ZhenAn 99.95% Pure Tungsten Sheet Manufacture
Our tungsten sheets, tungsten plates and tungsten foil products have high purity and can be customized in size and packaging according to customer needs. Please contact us to order.

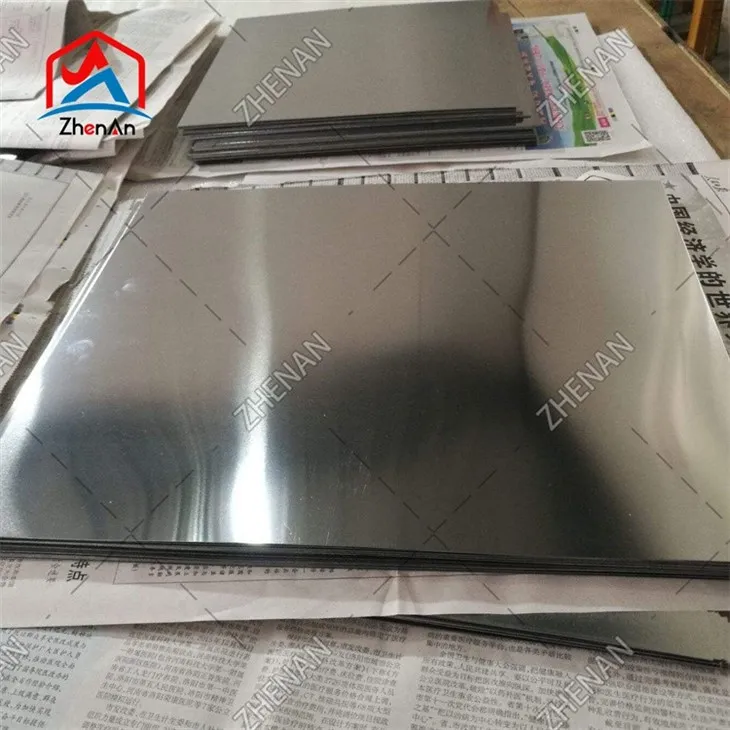

W Sheet
Tungsten sheets are widely used in the manufacture of electronics, light industry, medical, thin film technology and high-temperature furnace components.
Our tungsten sheets are developed and produced using new technologies, which are cost-effective and can be customized in packaging and size according to your needs. Welcome to contact us to order products.
Tungsten Sheet/plate/foil Related Parameters
|
Name |
Tungsten plate sheet foil strip |
|
Purity |
more than 99.95% (min) |
|
Density |
19.3g/cm3 |
|
Standard |
ASTM760/ GB T3875 |
|
Surface |
black, polished, Alkaline washing |
|
Working temperature |
1500-1800 °C |
|
Application |
electronics, illumination, vacuum plating, electron-vacuum, shield, high temperature furnace industry |
Tungsten Sheet/plate/foil Dimensions And Tolerances
|
Thickness (mm) |
Thickness Tolerance (I II) (mm) |
Width (mm) |
Width Tolerance (mm) |
Length (mm) |
|
0.10-0.20 |
±0.02 ±0.03 |
30-300 |
± 3 |
50-1000 |
|
> 0.20-0.30 |
±0.025 ±0.035 |
50-400 |
± 3 |
50-1000 |
|
> 0.30-0.40 |
±0.03 ±0.04 |
50- 400 |
± 3 |
50-1000 |
|
> 0.40-0.60 |
±0.04 ±0.05 |
50-400 |
± 4 |
50-1000 |
|
> 0.60-1.0 |
±0.06 ±0.10 |
50-400 |
± 4 |
50-1000 |
|
> 1.0-2.0 |
±0.10 ±0.20 |
50-400 |
± 5 |
50-1000 |
|
> 2.0-4.0 |
±0.20 ±0.30 |
50-400 |
± 5 |
50-1000 |
|
> 4.0-6.0 |
±0.30 ±0.40 |
50-400 |
± 5 |
50-1000 |
|
> 6.0 |
±6% ±8 % |
50-300 |
_ |
50-800 |
We Are Your Best And Most Assured Choice
1. Professional and timely pre-sales consulting team
2. One-to-one sales support team
3. Professional manufacturing team
4. Butler-style after-sales service team
We can provide you with free samples, manuals, laboratory test reports, industry reports, etc. Welcome to visit our factory and company.
