ZhenAn Tungsten Round Wire Supplier
In addition to tungsten wire, our factory also produces and sells molybdenum wire, tantalum wire, niobium wire, zirconium wire and other related wire materials. The products are high-purity and quality guaranteed. We welcome you to contact us for purchase.
99.95% Pure W Wire
Tensile strength of tungsten wire:
The tensile strength of the coated tungsten wire produced by our factory is usually expressed in g/mg/200mm. Standard tensile strengths range from 40 to 110 grams.
Straightening degree of coated tungsten wire:
Coated tungsten wire can be straightened through a mechanical or heat treatment process.
Tungsten wire cracking:
Longitudinal cracks are called cracks if their depth exceeds 15% of the diameter of the tungsten wire. Use an eddy current separator to detect cracks in the tungsten wire. The cracks of the tungsten wire products produced by our factory will not exceed 5% under a given length.
Tungsten Wire Diameter And Allowable Tolerance
| Weight (mg/200mm) Tolerance (%) | Diameter tolerance (%) | ||||||
| Diameter (microns) | Width (mg/200mm) | Level 0 | Grade 1 | Level 2 | Level 0 | Grade 1 | Level 2 |
| 5≤d≤12 | 0.075~0.44 | － | ±4 | ±5 | － | － | － |
| 12 | >0.44~0.98 | － | ±3 | ±4 | － | － | － |
| 18 | >0.98~4.85 | ±2 | ±2.5 | ±3 | － | － | － |
| 40 | >4.85~19.39 | ±1.5 | ±2.0 | ±2.5 | － | － | － |
| 80 | >19.39~272.71 | ±1.0 | ±1.5 | ±2.0 | － | － | － |
| 300 | >272.71~371.79 | － | ±1.0 | ±1.5 | － | － | － |
| 350 | － | － | ±1.5 | ±2.0 | ±2.5±1.0 | ||
| 500 | － | － | ±1.0 | ±1.5 | ±2.0 | ||
Common Packaging Of Tungsten Wire In Our Factory

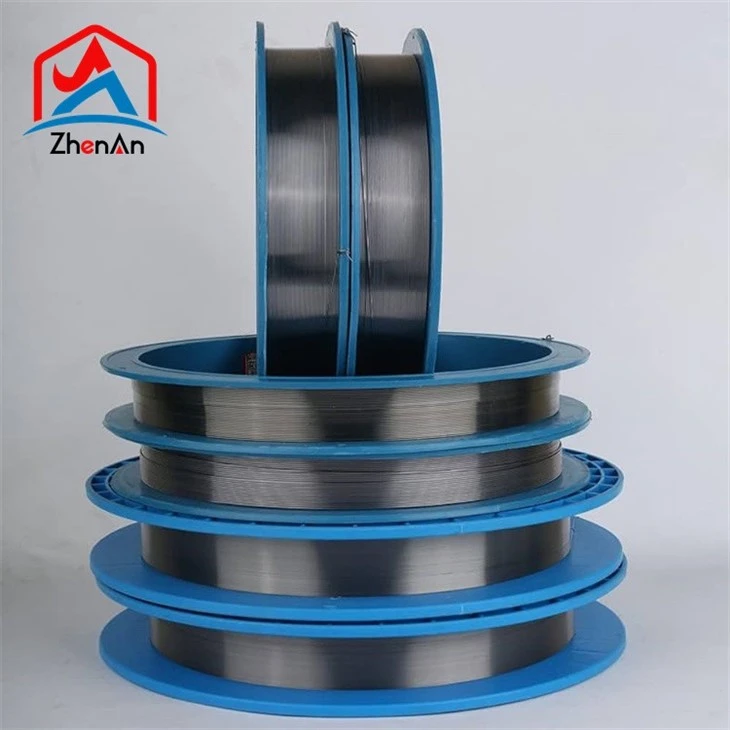

Tungsten wire in spool: plastic box or plastic vacuum package.
Tungsten wire in roll: woven bag or plastic vacuum packaging.
Note: The length or weight of a single tungsten wire can be provided according to your special requirements.
FAQ About ZhenAn Coated Tungsten Wire Factory
Q: Are you a factory or a trading company?
A: We are factory and trading company.
Q: How to place an order?
Answer: The buyer sends an inquiry → Obtains a quotation from Pusheng Steel → Order confirmation → The buyer arranges a 30% deposit → Starts production after receiving the deposit → Strict inspection during the production process → The buyer arranges the balance → Packaging → Delivery according to trade terms
Q: Can I have my own logo on the product?
A: Yes, you can send us your design and we can make your logo.
